Designing for Success: Why EMI/EMC Compliance Must Start at the Schematic Phase

Electronics are becoming more interconnected every day, and with that comes a growing challenge: ensuring devices meet electromagnetic interference (EMI) and electromagnetic compatibility (EMC) standards. These regulations are tightening worldwide, and failing to comply can lead to costly redesigns, delayed product launches, or even bans in key markets. The best way to avoid these pitfalls is to address EMI/EMC compliance early—right from the schematic design phase.

Electronic schematic diagram highlighting EMI/EMC components

Why EMI/EMC Compliance Matters More Than Ever

As devices become smarter and more connected, they emit and receive more electromagnetic signals. This creates a risk of interference that can disrupt device function or affect other nearby electronics. Regulatory bodies worldwide have responded by tightening EMI/EMC standards to ensure devices operate safely and reliably.

Failing to meet these standards can have serious consequences:

• Product recalls or bans in important markets

• Expensive redesigns that delay time to market

• Damage to brand reputation due to non-compliance

• Increased testing costs and repeated certification attempts




Addressing EMI/EMC only during final testing often means discovering problems too late. This leads to redesigns that could have been avoided with earlier planning.

Starting EMI/EMC Considerations at the Schematic Phase

The schematic design phase is when engineers define the core architecture of the product, including component selection and circuit layout. This stage offers the greatest flexibility to influence EMI/EMC performance without major cost or time penalties.

Key reasons to start EMI/EMC compliance here include:

• Component choice impacts emissions and susceptibility. Selecting components with lower noise and better shielding characteristics reduces EMI risks.

• Circuit topology affects signal integrity. Proper routing and grounding schemes minimize interference.

• Early identification of potential noise sources allows for design adjustments before physical prototypes.

• Integration of filtering and shielding components can be planned efficiently.

• Avoiding last-minute fixes that add complexity and cost.




For example, choosing a switching regulator with spread-spectrum modulation can reduce EMI emissions compared to a fixed-frequency design. Similarly, placing sensitive analog circuits away from noisy digital sections in the schematic reduces interference.

Practical Steps to Embed EMI/EMC in Early Design

To build EMI/EMC compliance into the schematic phase, teams should:

• Set clear EMI/EMC goals based on target markets and regulatory requirements.

• Use simulation tools to predict emissions and susceptibility from the schematic.

• Select components with EMI/EMC performance in mind, including filters, ferrite beads, and shielded connectors.

• Design proper grounding and power distribution networks to reduce noise coupling.

• Plan for physical layout constraints that support EMI/EMC, such as controlled impedance traces and separation of noisy signals.

• Collaborate with EMC test engineers early to align design choices with testing criteria.




These steps reduce surprises during prototype testing and certification, saving time and money.

Real-World Example: Avoiding Costly Redesigns

A consumer electronics company planned to launch a new smart home device globally. They initially focused on functionality and user experience, leaving EMI/EMC considerations until the prototype testing phase. Testing revealed excessive emissions from the power supply section, requiring a complete redesign of the power management circuit and PCB layout.

This redesign delayed the launch by six months and increased costs by 30%. After this experience, the company adopted a new process where EMI/EMC compliance was integrated from the schematic phase. Their next product passed certification on the first attempt, launching on schedule and saving significant resources.

The Role of Cross-Functional Collaboration

EMI/EMC compliance is not just the responsibility of the design engineer. It requires collaboration across teams:

• Design engineers must understand EMI/EMC principles and apply best practices.

• Test engineers provide feedback on compliance criteria and testing results.

• Product managers ensure timelines and budgets account for compliance activities.

• Manufacturing teams help implement shielding and grounding solutions in production.




Early and ongoing communication between these groups ensures EMI/EMC is treated as a core design requirement, not an afterthought.

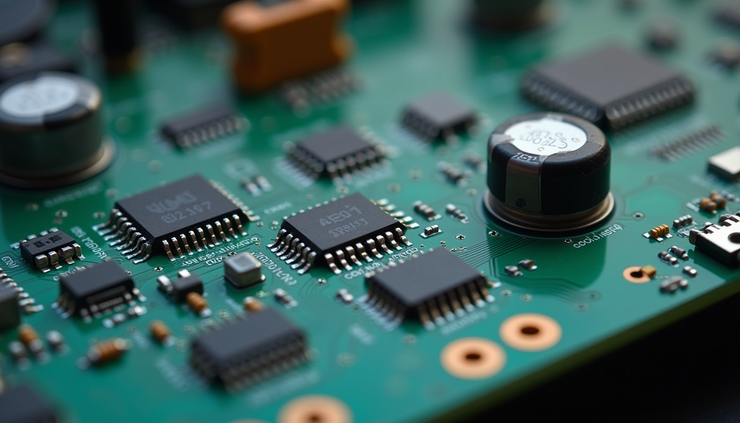

Electronic circuit board showing EMI shielding and layout for compliance

Preparing for Global Market Requirements

Different regions have varying EMI/EMC standards. For example:

• The FCC regulates emissions in the United States.

• The CE mark covers European Union requirements.

• Japan's VCCI and China's CCC have their own standards.




Starting compliance early allows designers to tailor products to meet multiple standards simultaneously. This reduces the risk of redesigns for specific markets and speeds up global launches.

Summary

EMI/EMC compliance is a critical factor in the success of any electronic product. Waiting until final testing to address these issues leads to costly delays and redesigns. Instead, integrating EMI/EMC considerations at the schematic design phase offers the best chance to build compliant, reliable products on time and within budget.

Designers should focus on component selection, circuit topology, and early simulation to identify and mitigate EMI risks. Cross-team collaboration and awareness of global standards further support smooth certification and market entry.
